Connecting

Contents

• Web Interfaces
• Neo4j Web Console
• Kibana Web Console
• Elasticsearch
• In-Container Shells
• Neo4j Shell
• Bash Shells

Web Interfaces

Neo4j

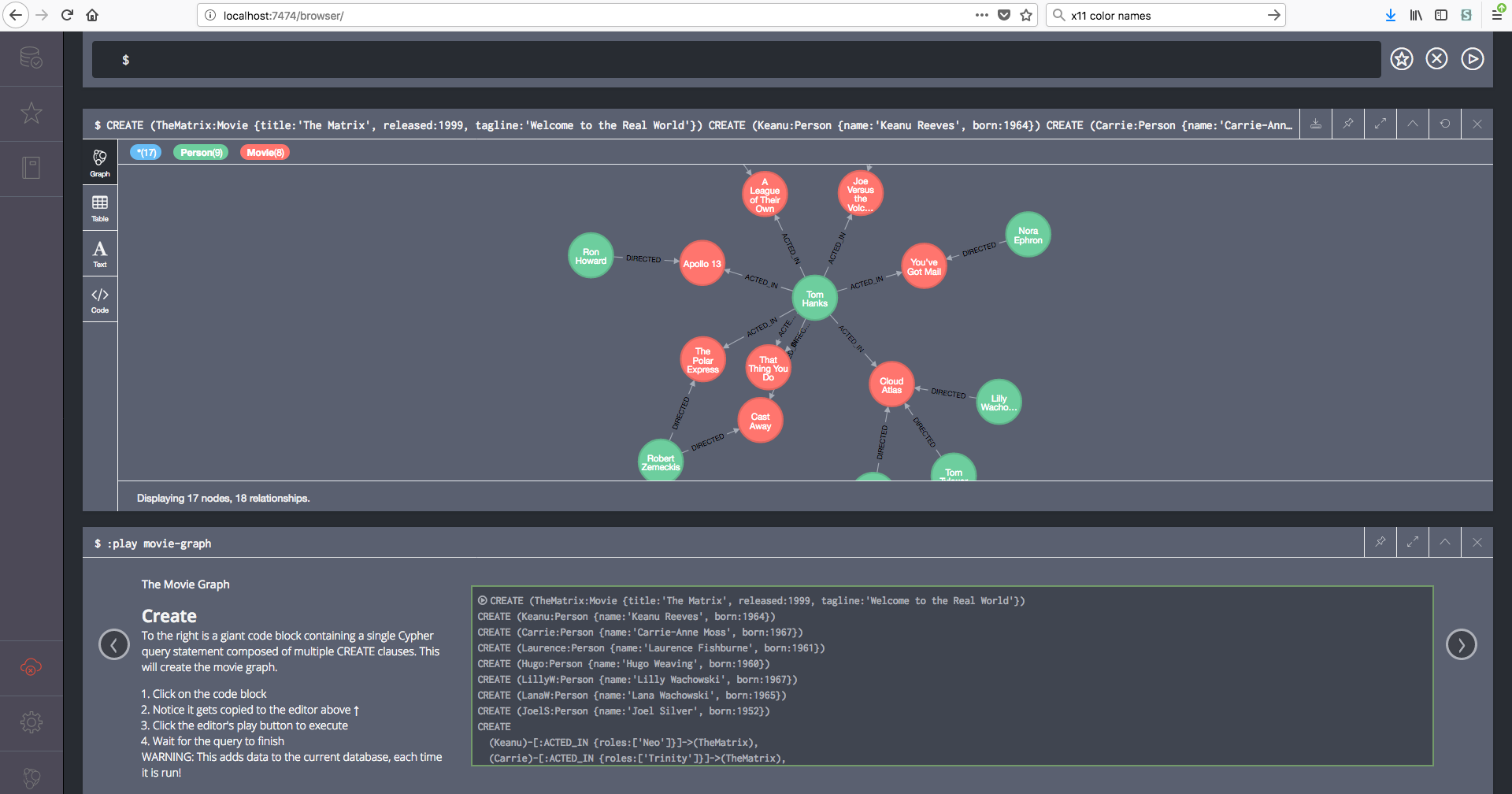

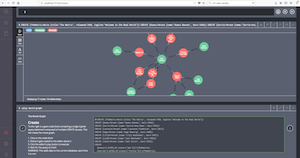

Load up the web interface for Neo4j:

• http://localhost:7474/browser/

Kibana

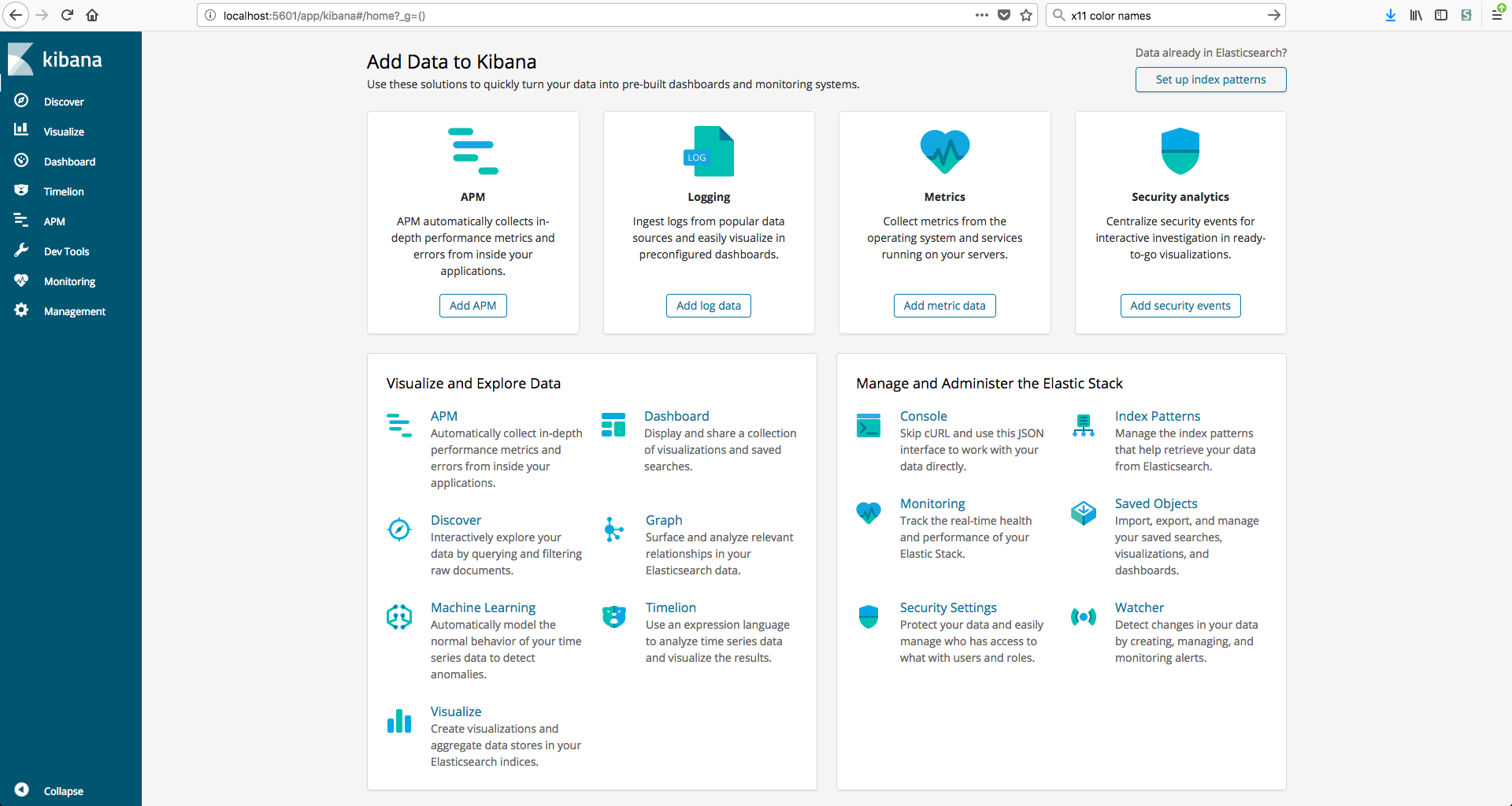

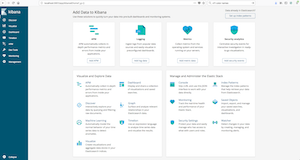

Load up Kibana in a browser:

• http://localhost:5601/

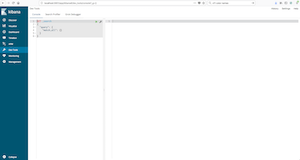

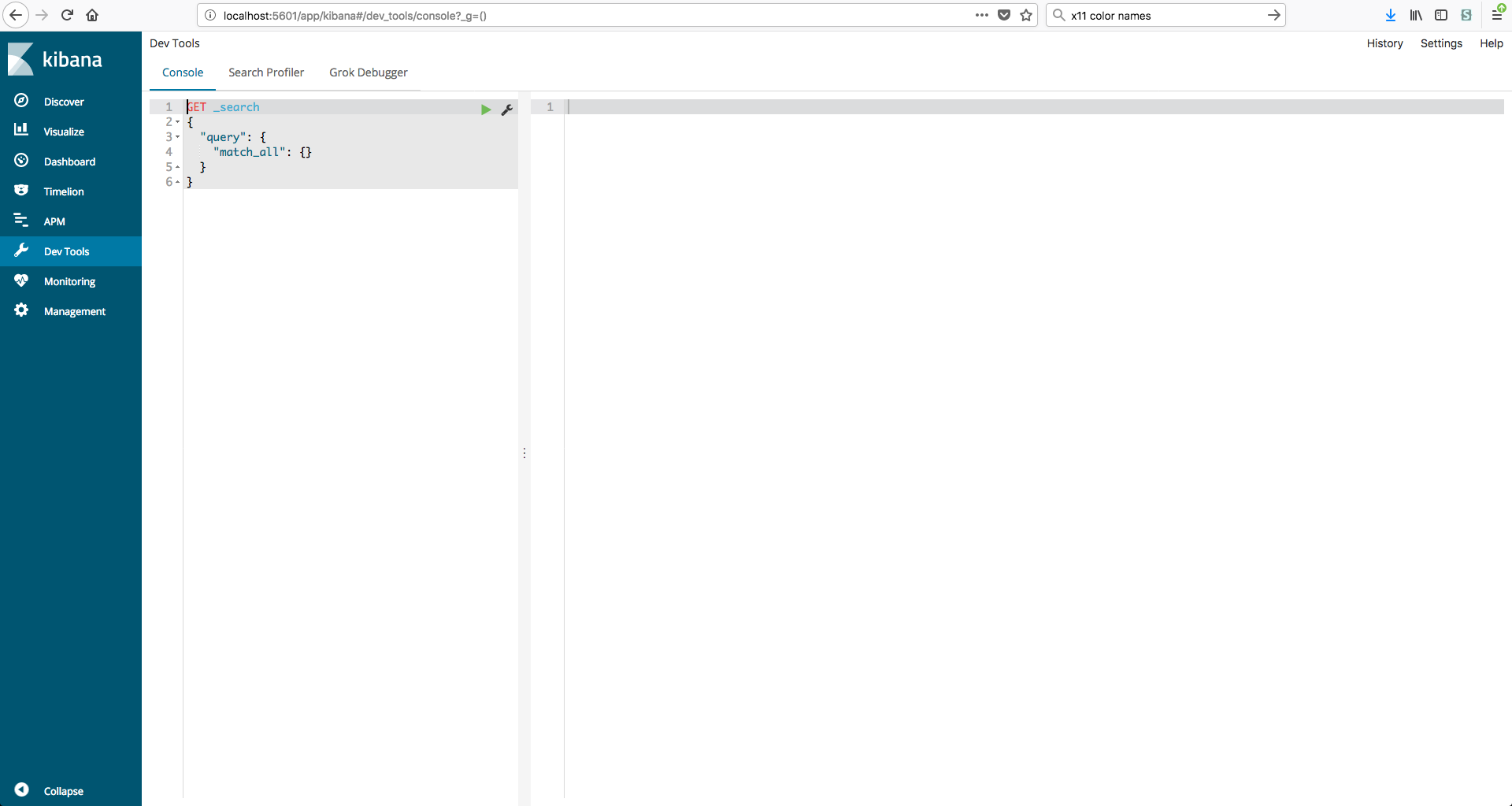

What used to be Marvel in previous releases of Elasticsearch is now available by navigating to the “DevTools” menu item, or this direct link:

• http://localhost:5601/app/kibana#/dev_tools/console

If you want to use this setup for more then just a week or so, you’ll want to get a free Basic Elasticsearch license. To do this, navigate to the management tab and click “Licsen Magagement” in the main window, following the instructions for adding a new Basic license.

Elasticsearch

The ports 9209 and 9210 are used in the CMR for different types of Elasticsearch deployments, so we followed that trend. Elasticsearch web access is available here:

• http://localhost:9211/

In-Container Shells

Neo4j Shell

You can run the Neo4j shell on the container by executing the following:

• resources/scripts/neo4j-cypher.sh

This will put you at the Cypher shell prompt:

Connected to Neo4j 3.3.3 at bolt://localhost:7687.
Type :help for a list of available commands or :exit to exit the shell.
Note that Cypher queries must end with a semicolon.
neo4j>

Bash Shells

Should you wish to bring up a system shell on the containers, you can execute any of the following:

• resources/scripts/neo4j-bash.sh (root user)
• resources/scripts/elastic-bash.sh (root user)
• resources/scripts/kibana-bash.sh (kibana user)
